Monday, July 24, 2017

Instant File Recovery from Azure VM backups

Instant File Recovery from Azure VM backups




Hi Friends Backup Vmware VMs was to be the next post but with some issue with  Infra till i fix it will do the Instant File Recovery from Azure VM backups. THis feature was GA on 20th July 2017


This Feature enables you to Instant recovery of files and folders from Azure VM backups by
Backup. In this post we will see how to Configure and Backup  Azure Windows VM backups and Linux  VM backups.

OK lets get started.

I have the vault created  already link in the old posts in southasia region and i have two VMs One running Windows server and One Linux. we will 1st see the windows File recovery.

Before your start do a proper planning  refer the below link that will help you



Letz stat protacting the VMs running on Azure

Navigate to the Reovery Vault and on the Overview Page Select backup.













On the Backup goal  select Azure on the drop down in where your workload is running and hit OK









Then the Backup Policy  Create New One and give a name i am gonna go with the default. but you can modifiy thebackup frequency and Retentions as per your requirment here.
































And as a last step  select the VMs you want to back up .














And Click Enable Backup and this will start the Backup.

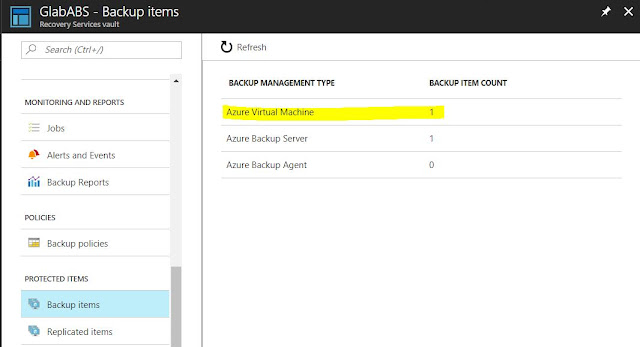

Navigate to Protected Iteams in the vault  and select backup iteams.


























OK now that we have backup the server we will see how to restore a folder .











I have Deleted the Glabstuff folder.

To start the restore Go the recovery vault click backup iteams and select Azure VMs























On the Backup iteam Page click on File Recovery.
























 Next will be promoted to select the Recovery point and Click Download Executable.



When the Download in Completed Run the Exe, this will bring up the PowerShell window and prompted for a password copy or type the characters in the Password to run Executable.


This will mount a drive as shown on the above image F drive. We will restore the File and folder.
















My C drive without the Glab folder. now i am goanna restore it.



















On the Mounted drive select the folder you want to restore copy  and past on the original Location .













After restore I can see all my stuff .
























After restoring click Unmount Disk.
